Server Card & discovery

A Server Card is a small JSON document a crawler, registry, or another agent can fetch to learn what your MCP server exposes — its name, transport endpoint, and tool list — without opening an MCP session. mcppipe serves this card at /.well-known/mcp/server-card.json following the MCP discovery primitive (SEP-2127).

Discovery is off by default. A private tunnel is indistinguishable from one that does not exist: it answers discovery probes with 404. You opt in per tunnel from Settings.

Turn discovery on

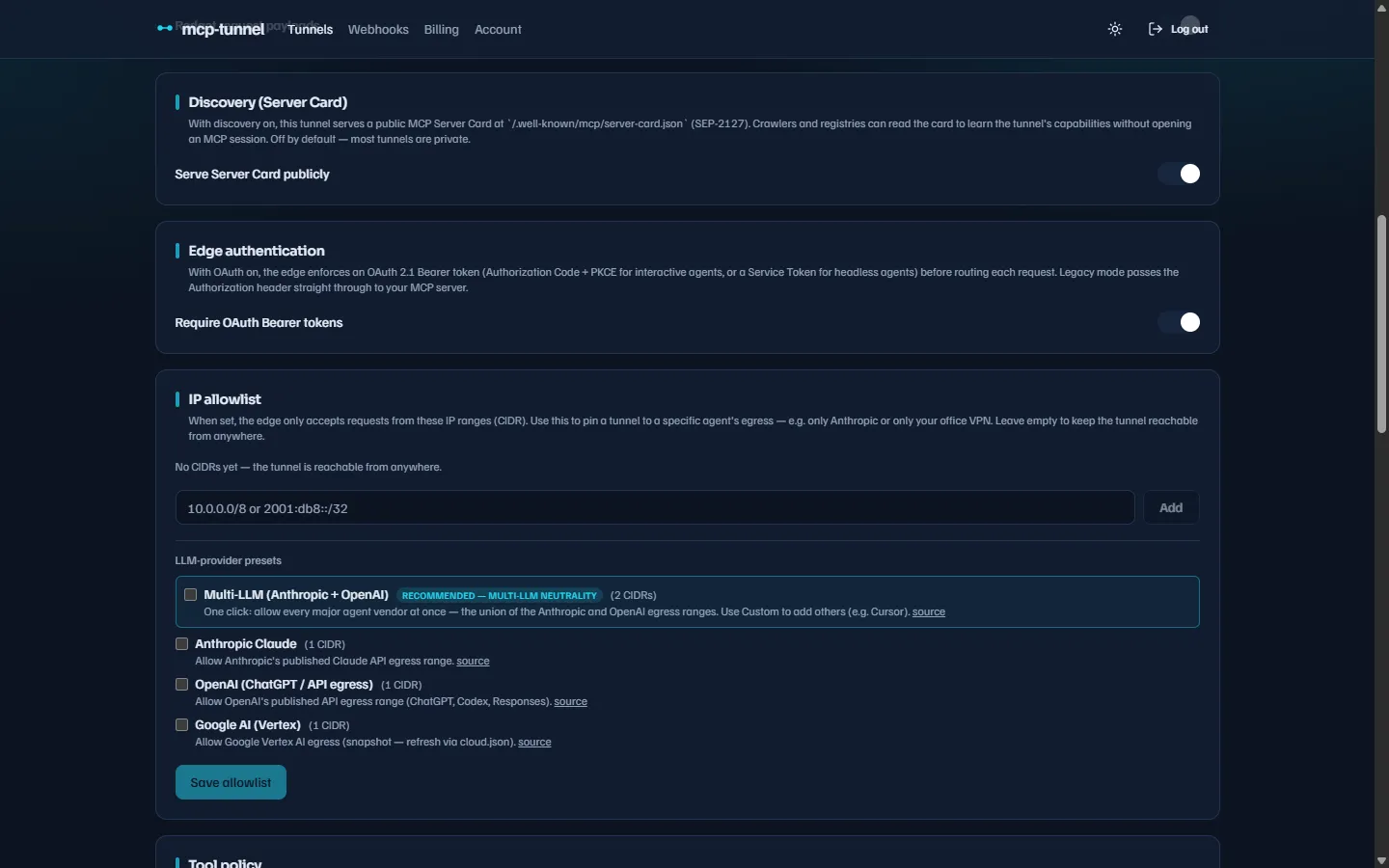

Open a tunnel, go to the Settings tab, and find the Discovery (Server Card) section. Flip Serve Server Card publicly.

Discovery is opt-in per tunnel and defaults to off.

The toggle writes the discoverable flag on the tunnel. You can also set it through the API:

curl -X PATCH https://api.mcppipe.dev/api/tunnels/<tunnel-id> \
  -H "Authorization: Bearer <session-token>" \
  -H "Content-Type: application/json" \
  -d '{"discoverable": true}'

When you flip it on, the dashboard confirms that .well-known/mcp/server-card.json now serves a card; flipping it off confirms the path returns 404 again.

Note

The card endpoint is separate from the MCP endpoint. Your tunnel always serves MCP at /mcp (Streamable HTTP); discovery only controls whether the read-only .well-known card is published.

Where the card is served

The card is reachable on the same public host as the tunnel:

Path	Notes
https://<subdomain>--<account-slug>.<zone>/.well-known/mcp/server-card.json	Primary path (SEP-2127).
…/.well-known/mcp-server-card.json	Legacy alias for early crawlers; identical response.

For example, a tunnel notes under account slug acme serves its card at https://notes--acme.mcppipe.dev/.well-known/mcp/server-card.json. If the tunnel has a custom domain, the card is served there too.

What the card contains

The card is built entirely from the tunnel’s record and its pinned tool names — it does not open an MCP session to render. Tool names are captured by tool pinning every time a tools/list flows through mcppipe, so a tunnel that has never served a tools/list renders a valid card with an empty tools array.

{
  "$schema": "https://static.modelcontextprotocol.io/schemas/draft/server-card.schema.json",
  "name": "io.mcppipe/notes",
  "title": "notes",
  "description": "MCP server exposed via mcppipe",
  "version": "1",
  "capabilities": { "tools": {} },
  "tools": [
    { "name": "echo" },
    { "name": "add" }
  ],
  "remotes": [
    { "type": "streamable-http", "endpoint": "https://notes--acme.mcppipe.dev/mcp" }
  ],
  "_meta": {
    "io.mcppipe/served-by": "mcppipe",
    "io.mcppipe/card-version": 1
  }
}

Field notes:

• name — reverse-DNS-style identifier. For a default subdomain it is io.mcppipe/<subdomain-label>; for a custom domain it is io.mcppipe/<fqdn>.
• remotes[].endpoint — the /mcp URL of this tunnel, advertised with transport type streamable-http.
• tools[] — { "name": ... } objects only. Tool descriptions and schemas are never published in the card (only names are pinned), which keeps the discovery surface minimal.
• _meta — marks the card as mcppipe-hosted so a reader can identify it without parsing the name prefix.

Response headers

A successful card response is 200 OK with:

Header	Value
Content-Type	application/json
Cache-Control	public, max-age=600 (10 minutes)
Access-Control-Allow-Origin	* (so a browser-side discovery UI can fetch it directly)
X-Content-Type-Options	nosniff

The 10-minute cache means a freshly-pinned tool will appear in the card within a few minutes, while keeping crawlers from hammering the service.

What discovery does not expose

The card endpoint is observation, not traffic, so the traffic gates do not apply to it. It is exempt from the per-tunnel tool policy, per-method/per-tool rate limits, IP allowlist, and quota — and it does not require an OAuth bearer token, even when the tunnel’s MCP endpoint does. The card never carries request payloads, so none of those checks are meaningful for it.

Rendering the card is cheap — it reads only the tunnel’s record and its pinned tool names, and never wakes a sleeping CLI or opens an MCP session. Because the card is built from a stored snapshot, hitting .well-known cannot be used to force an upstream connection.

Behavior summary

Request	Response
Discoverable tunnel	200 with the card JSON
Tunnel exists but not discoverable	404 — identical to “no tunnel”
No tunnel matches the host	404
Host resolver unavailable	502 Bad Gateway

Caution

A non-discoverable tunnel and a non-existent tunnel return the same 404. This is intentional: a crawler cannot probe which subdomains exist by toggling cards. If you expect a card and get a 404, confirm the Discovery (Server Card) toggle is on for the right tunnel.

Tip

Discovery pairs naturally with governance: the tool names in the card come from the same pin snapshot used for rug-pull detection. Approve a tool baseline and the published card stays in sync with the tools you actually allow.

Next steps

• Tool governance — how tools get pinned, and allow/deny policy.
• Authentication: OAuth & Service Tokens — gate the /mcp endpoint itself.
• Custom domains & TLS — serve the card on your own FQDN.
• Dashboard reference — the full list of tunnel Settings sections.
